Hybrid Network Topology: The Architecture That Powers 87% of Fortune 500 Networks

Trying to run a modern enterprise IT shop using just one type of network layout? Good luck. Most organizations today take a smarter approach: the hybrid network topology. This design pulls together the best parts of different network layouts, while helping avoid their individual downsides.
Getting hybrid topologies right isn't always easy, even though they're common and offer solid benefits for scaling, reliability, and moving traffic efficiently. Poor designs can lead to performance problems, security gaps, and wasted money. As a network engineer or IT pro, you need to understand hybrid topologies and how they actually work in the real world to build networks that get the job done.
This guide looks at how hybrid topologies are put together, why people use them (and what makes them tough), and where you actually see them. You'll get some ideas about common patterns and learn how CloudMyLab can give you a place to practice building these complex designs.
[TOC]
What is Hybrid Topology?
A hybrid topology is when you combine two or more different network layouts into one setup. Instead of just using star, mesh, ring, or bus everywhere, a hybrid lets you use each type where it makes the most sense for different parts or locations in your network.
The idea is simple: use the right tool for the job. You might use mesh where you absolutely need maximum reliability (like in your core data center), star at the network edge for simpler management and lower cost, ring where predictable timing is key (industrial automation comes to mind), or even bus to connect older, legacy equipment if you need to do it cheaply.
Types of Hybrid Topologies
How you mix and match these layouts affects how well the network performs, how much it costs, and how reliable it is. Here are some common patterns.
Star-Ring Hybrid Topology
This combines the centralized management of a star network with the resilience of a ring backbone. You'll see this often in city-wide networks (MANs). Multiple star networks (maybe individual buildings or neighborhoods) connect to nodes on a central ring.
The stars handle local traffic, while the ring provides redundant paths between the different star groups. Often built with dual rings for better failover. Many ISPs use this pattern.

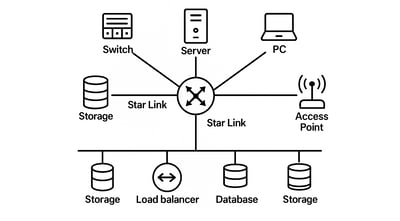

Star-Bus Hybrid Topology
The star-bus hybrid merges the central control idea of star with the linear simplicity of a bus. Handy in places that have a mix of modern and older equipment, like campus networks or industrial sites. Individual star networks are connected together by a main bus cable.
Each star manages its local traffic, and the bus is the shared path between the star networks. Sometimes older devices connect directly to the bus. A factory might use this, connecting new equipment in stars while keeping older machines on a bus backbone as they modernize.

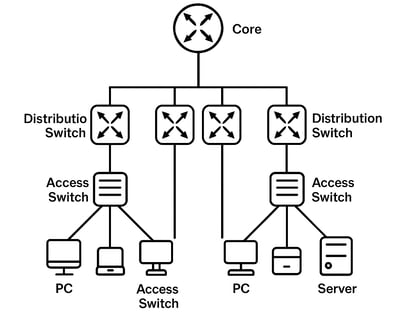

Hierarchical (Tree) Network Topology
Hierarchical topology, also called tree topology, is a hybrid type that builds a multi-level structure, often mirroring how an organization or geography is set up. It flows from a core layer, down through distribution layers (like buildings or departments), to access layers (where users connect).
You can use different topologies at each layer – maybe a resilient mesh at the core, redundant links at distribution, and simple star at the access layer. Big companies use this a lot to balance cost and reliability based on how critical each part is.

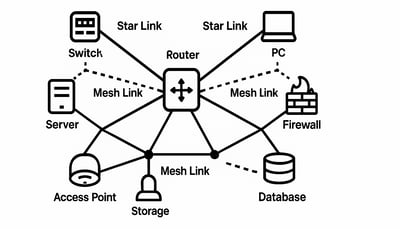

Star-Mesh Hybrid Topology
The star-mesh hybrid topology is a common pattern in high-end enterprise networks. It uses star topology for easier management at the edge (where users connect) and mesh topology for maximum reliability in the core. Critical core infrastructure is a mesh. Edge networks for users are typically simple, cheaper star designs. Areas connecting the edge to the core might use partial mesh or dual connections.
Modern data centers often use leaf-spine (a form of partial mesh) inside racks for high-speed server traffic, connecting to core routers in a star-like or smaller mesh setup.
Other Advanced Hybrid Variations
Architects come up with custom mixes too. A Ring-Mesh might combine predictable ring performance with mesh redundancy (seen in some industrial controls). A Bus-Mesh could integrate old bus systems into a modern mesh core. A Multi-Ring links several ring networks together (popular in large city networks for local redundancy).
What are the advantages of Hybrid Topology?
Using a hybrid approach lets you build a network customized for your exact technical and business goals. Sticking to just one traditional layout often forces compromises. A pure mesh is reliable but costs a fortune. A pure star is simple but fails if the central device dies. Pure ring designs offer predictable paths but can be tricky to manage.
Hybrid topology lets you avoid these trade-offs. It recognizes that not every part of your network has the same requirements.
Save Money
You can use simpler, cheaper star or bus designs in less critical places (like departmental LANs) and only deploy the more expensive mesh or redundant links where you really need high availability (like the data center core). Don't overspend where it's not necessary.
Better Reliability
Instead of over-engineering the entire network, hybrid designs let you put redundancy (dual links, redundant devices, mesh segments) precisely where the critical paths are. If an edge star network goes down, the core mesh or ring can keep other parts of the network running.
Easier to Grow
Hybrid designs adapt well to expansion. You can add new departments, buildings, or remote sites as new star branches or ring segments and connect them to the backbone without necessarily having to rebuild the whole network. Each part can grow somewhat independently.
Flexibility
Hybrid topology is good if you have a mix of old and new infrastructure. You can connect legacy equipment using compatible layouts (like bus) while putting modern systems on newer architectures (mesh, high-speed star), letting you upgrade gradually without replacing everything at once.
Protocol Flexibility
Different Layer 2 and 3 protocols or technologies can coexist and interact more easily. You can run OSPF routing in a mesh backbone and connect to star segments using simpler routing or even just Layer 2.
Tailor Traffic Flow
Designers can get fancy with traffic management. Bandwidth-hungry or critical traffic can use high-performance mesh backbones, while standard user traffic takes simpler paths. You can apply Quality of Service (QoS) and security policies differently across the various parts of the network.
Can I use a hybrid topology for a small business?
Even small businesses can benefit from simple hybrid designs that balance cost, future growth, and better reliability. Maybe a couple of redundant switches for key servers, standard star connections for PCs, and a VPN for remote access. More reliable than pure star, cheaper than pure mesh.
Technical Architecture of Hybrid Networks
Designing a hybrid layout means thinking about different network layers to make sure everything works together, performs well, and stays up.
Layer 1 – The Cables
Hybrid designs often mix cable types based on need and distance. Fiber is common for high-speed backbones between buildings or in data centers. Copper Ethernet (Cat6A/7) is standard for connecting devices within a building. Older segments might use Cat5e or even coax. Wireless adds mobility. Different cable types are often segregated – fiber for high-resilience backbones, copper for edge segments.
Layer 2 – Switching Topology
Layer 2 gets tricky, especially when you combine rings or mesh parts that can create loops and broadcast storms. VLANs are crucial for separating traffic logically across different physical segments. Spanning Tree Protocol (STP), RSTP, or MSTP are absolute must-haves for preventing Layer 2 loops in any hybrid design that isn't pure star/bus. You need careful planning where different topologies meet. MAC address tables can get complex. Different segments might use different STP variants (e.g., faster RSTP for mesh). Putting the root bridge in the right place is vital.
Cisco Configuration Example: VLANs and Trunking
VLANs provide logical segmentation across hybrid topology boundaries, while trunking enables inter-VLAN communication between different topology segments.
# Configure VLANs
Switch(config)# vlan 10
Switch(config-vlan)# name HR_Department
Switch(config-vlan)# vlan 20
Switch(config-vlan)# name IT_Department
# Assign VLANs to interfaces
Switch(config)# interface FastEthernet0/1
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 10
Switch(config)# interface FastEthernet0/2
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 20
# Enable trunking
Switch(config)# interface GigabitEthernet0/1
Switch(config-if)# switchport mode trunk
Switch(config-if)# switchport trunk allowed vlan 10,20
Layer 3 – Routing Protocols
Routing connects the different parts of the network and decides the data paths. OSPF is often used because its area design maps well to segmenting a hybrid network.
Cisco Configuration Example: OSPF for Hybrid Network Routing
OSPF's area design makes it ideal for hybrid topologies, allowing you to create routing boundaries that match topology transitions:
Router(config)# router ospf 10
Router(config-router)# network 192.168.10.0 0.0.0.255 area 0
Router(config-router)# network 192.168.20.0 0.0.0.255 area 1
In this example, Area 0 might be your mesh core backbone, while Area 1 could be a star-topology distribution layer. This segmentation helps contain routing updates and improves stability.
EIGRP is another option if you're a Cisco shop. BGP is typically used at the network edge or core, especially in hybrid WANs, to exchange routes with external networks or services.
Redundancy & Failover
Hybrid design is built around making things resilient. You'll typically use dual links and redundant switches/routers in critical sections (mesh/ring). First Hop Redundancy Protocols (FHRPs) like HSRP or VRRP keep default gateways available in star or partial mesh segments if a router fails.
Cisco Configuration Example: HSRP for Gateway Redundancy
Here's how to configure HSRP in a star-mesh hybrid design:
Router1(config)# interface GigabitEthernet0/0
Router1(config-if)# ip address 192.168.1.2 255.255.255.0
Router1(config-if)# standby 1 ip 192.168.1.1
Router1(config-if)# standby 1 priority 110
Router1(config-if)# standby 1 preempt
Router2(config)# interface GigabitEthernet0/0
Router2(config-if)# ip address 192.168.1.3 255.255.255.0
Router2(config-if)# standby 1 ip 192.168.1.1
Router2(config-if)# standby 1 priority 100
Router2(config-if)# standby 1 preempt
Load balancing using ECMP routing or LACP link aggregation can distribute traffic and increase bandwidth in mesh areas.
Cisco Configuration Example: EtherChannel for Load Balancing
EtherChannel allows bundling multiple physical links into a single logical link, providing both increased bandwidth and redundancy:
Switch(config)# interface range GigabitEthernet1/0/1 - 2
Switch(config-if-range)# channel-group 1 mode active
Switch(config-if-range)# exit
Switch(config)# interface Port-channel1
Switch(config-if)# switchport mode trunk
Challenges of Hybrid Topology
Flexibility is great, but combining topologies adds technical complexity that needs careful planning and skilled people to manage.
Complex Configuration
Integrating different topologies means configuring devices with different tech and protocols. You might need to set up routing protocol redistribution between segments, manage multiple spanning tree domains, configure QoS policies that work across different links, and set up security zones that span various topologies.
Higher Skill Requirements
IT pros supporting hybrid networks need a wider range of skills than those just handling one layout. You need to know multiple routing protocols, understand different STP versions, be good at troubleshooting problems across different layers and topologies, and often figure things out even when dealing with gear from different vendors.
Harder Troubleshooting
Finding and fixing problems can be tricky. An issue starting in one part (like a routing loop in a mesh) might cause symptoms (like intermittent access) in a completely different part (like an edge star network). You need a systematic way to diagnose problems across the whole complex setup.
Cost Upfront
While hybrid designs can save money long-term, the initial cost to buy diverse equipment, advanced management tools, and train staff can be significant.
Vendor Interoperability
Big hybrid networks often use gear from different vendors. While standards are supposed to make things work together, real-world implementations can sometimes have quirks that need specific configs.
Comparison with Other Topologies
Let's settle some debates that have raged in network engineering circles since the dawn of Ethernet.
What is the difference between Tree Topology and Hybrid Topology?
Tree topology, also known as hierarchical topology, is actually a type of hybrid topology, specifically a multi-level, branching one. Hybrid is a broader term for any combination of two or more basic types. Tree is good for hierarchical structure, but hybrid is more flexible – it can include things like mesh for redundancy, which standard Tree lacks.
What is the difference between Star and Hybrid Topology?
Star topology is simple – everything connects to a central point. Easy to manage locally but fails if the center dies. Hybrid uses the Star idea for simplicity at the edge but overcomes the single-point-of-failure problem by adding other topologies (like mesh or ring) for reliability in the backbone. Networks often start as pure star and become hybrid as they grow.
Scalability Face-off
Pure topologies hit scalability walls like a sprint runner hitting a marathon. Star topology becomes unwieldy beyond 200-300 nodes. Mesh topology becomes prohibitively expensive at similar scales. Ring topology... well, let's just say there's a reason Token Ring is extinct.
Hybrid topology scales like a well-designed city. You can add suburban star networks, downtown mesh cores, and ring roads without rebuilding existing infrastructure.
Flexibility Comparison
Single topologies are like railroad tracks, efficient but inflexible. Hybrid topology is like a highway system with interchanges, allowing multiple routes and easy adaptation.
Need to add a high-security zone? Insert a mesh segment. Connecting a remote office? Extend a star branch. Integrating a legacy system? Add a ring or bus segment. Try doing that with a pure topology without major surgery.
Comparative Analysis: Key Metrics
Performance Comparison:
Metric | Star Topology | Tree Topology | Mesh Topology | Hybrid Topology |
Average Latency |
5-10ms |
10-20ms |
2-5ms |
3-8ms |
Failure Recovery |
30-45 seconds |
45-60 seconds |
<1 second |
1-10 seconds |
Scalability Limit |
~200 nodes |
~500 nodes |
~50 nodes |
Unlimited |
Cost per Port |
$100-200 |
$150-250 |
$1,000-3,000 |
$200-500 |
Operational Characteristics:
Characteristic | Star Topology | Tree Topology | Mesh Topology | Hybrid Topology |
Configuration Complexity |
Low |
Medium |
High |
High |
Troubleshooting Difficulty |
Low |
Medium |
Medium |
High |
Redundancy Options |
Limited |
Limited |
Extensive |
Flexible |
Protocol Flexibility |
Low |
Low |
Medium |
High |
Traffic Engineering |
None |
Basic |
Advanced |
Advanced |
Real-World Use Cases of Hybrid Topology
The theoretical advantages of hybrid topology become tangible when examined through actual implementations across various industries and documented in clear network diagrams.
Enterprise and Campus Networks
Large organizations often implement star-mesh hybrids. Each building uses a star layout internally, and the campus core employs a partial mesh or ring backbone to ensure redundancy and efficient data transmission between nodes and devices.
Example: A university connects departments in a star topology per building and uses a fiber-optic mesh ring across the campus for high-speed inter-building communication.
Data Centers
Modern data centers use leaf-spine (partial mesh) inside racks for high-speed server talk, connecting to core routers (often in a star or smaller mesh arrangement) for traffic leaving the rack.
Technologies Involved: VXLAN, BGP EVPN, and OSPF redistribution between spine and aggregation layers.
Industrial Automation
Factories use things like ring topologies for precise real-time control, connecting to a star or bus backbone to link into the main IT network.
Protocols: PROFINET, EtherNet/IP, and Modbus TCP operating in real-time loops with control room access over a star interface.
Telecommunications Networks
Telecom companies use highly reliable mesh networks (MPLS) for their core backbones. Access networks (connecting homes/businesses) branch off using ring designs (Metro Ethernet) or star/PON, balancing resilience in the core with cost at the edge.
Hybrid Example: MPLS core (full mesh) + metro Ethernet (ring) + residential access (star or PON).
Cloud and Hybrid Cloud Architectures
Connecting your data center to cloud environments often creates a hybrid topology. Your on-prem network connects over a WAN (often a hybrid design itself) to a cloud network, and maybe to other clouds.
Vendors: Cisco Viptela, Fortinet SD-WAN, AWS Transit Gateway, Azure Virtual WAN.
Best Practices for Designing a Hybrid Network
Designing and implementing hybrid network topologies is a complex skill that combines theory with real-world practice. Getting hands-on experience in a realistic lab is absolutely crucial before you try to build or change live networks.
Logical Segmentation
Use VLANs, subnets, and maybe VRFs to create logical sections that match your physical layout and needs. Makes management easier, isolates traffic, and helps security.
Area-Based Routing
Use protocols like OSPF with different areas. This isolates problems – an issue in one area (mapping to a segment) is less likely to break routing everywhere else.
Smart STP Deployment
If your hybrid has Layer 2 segments (star, ring, mesh), plan your STP carefully. Proper root bridge placement and priority configs are key at boundaries to prevent loops and ensure failover works right.
Automate Your Configs
Use automation tools like Ansible or Terraform. This keeps configs consistent, cuts down human errors, and makes changes easier across different types of gear.
Robust Monitoring
Get monitoring tools that give you visibility across all the different segments and devices. Tools that map the topology, show performance (latency, jitter), and analyze traffic are crucial for finding problems and tuning performance.
Detailed Docs
Document everything! Physical layout, logical setup (VLANs, subnets), routing (areas, redistribution), STP design, redundancy, security zones. Essential for troubleshooting and planning future changes.
Simulating Hybrid Topology with CloudMyLab
Mastering hybrid designs needs more than just reading about them. Building and testing these complex networks in a lab is vital. But setting up a physical lab with different routers, switches, and firewalls from various vendors is expensive and a lot of work.
Network simulators and emulators are the answer. Tools like Cisco CML, EVE-NG, and GNS3 let you design, configure, and test detailed hybrid topologies virtually. You can mix virtual routers and switches from different vendors, set up routing protocols, configure Layer 2 segmentation, and test failover in a safe environment.
CloudMyLab gives you hosted access to these powerful lab platforms. Instead of installing and managing the software and needing powerful hardware yourself, you access dedicated, high-performance virtual labs through a web browser.
Using CloudMyLab, you can:
- Build complex star-mesh, star-ring, or hierarchical topologies using virtual gear.
- Configure and test Layer 2 protocols like STP and VLANs where different topologies meet.
- Set up Layer 3 routing protocols like OSPF and BGP to connect segments.
- Break links virtually and test if your redundancy and failover configs work.
- Practice finding and fixing problems in realistic hybrid scenarios.
Conclusion
Hybrid network topology is essential for modern networking environments where flexibility, redundancy, and scalability are critical. By integrating VLANs, routing protocols, load balancing, and redundancy mechanisms, network engineers can design resilient networks that support dynamic business needs. Through the careful integration of various network topology strategies and maintaining precise network diagrams, organizations can configure and maintain hybrid networks that ensure robust data transmission among nodes and devices.
What's next?
You may dive deeper into topology articles to master their nuances and trade-offs. For hands-on learning, CloudMyLab offers hosted network simulation with tools like GNS3, EVE-NG, and Cisco Modeling Labs (CML).
Take it a step further by integrating automation tools like Ansible or Python scripts to streamline configuration and management, aligning your skills with the future of network engineering
FAQs
What is the importance of Hybrid Topology in LAN?
Hybrid topology in a LAN combines multiple network topologies (e.g., star, bus, ring) to leverage their strengths, offering flexibility, scalability, and fault tolerance. It optimizes network performance, simplifies expansion, and isolates failures, making it ideal for diverse, growing networks and efficient data transmission.
What is hybrid topology used for?
Hybrid topology is used in LANs to integrate different network topologies (e.g., star, bus, ring) for enhanced flexibility, scalability, and reliability. It supports diverse network needs, facilitates expansion, and improves fault tolerance by ensuring that every node and device is connected in an optimized physical topology.
When would it make sense to switch from a simple topology to a hybrid one?
Switch to a hybrid topology when a simple topology lacks scalability, flexibility, or fault tolerance for growing or diverse network demands—such as in expanding businesses or complex systems requiring reliable performance and efficient data transmission across all nodes.
What kind of hardware do I need for a hybrid topology?
A hybrid topology typically requires routers, switches, hubs, network interface cards (NICs), appropriate cabling (Ethernet, fiber, etc.), and possibly wireless access points, depending on the combined topologies and the scale of nodes and devices involved.
Can I simulate hybrid topology virtually?
Yes. Modern network simulation tools fully support hybrid topology design and testing. Popular platforms include:
- Cisco CML (Cisco Modeling Labs): Supports complex hybrid designs with real IOS images.
- EVE-NG (Emulated Virtual Environment – Next Generation): Enables multi-vendor hybrid topologies.
- GNS3 (Graphical Network Simulator-3): Provides extensive device support for hybrid configurations.
What protocols are ideal for hybrid topologies?
Protocols like OSPF (with areas), BGP, STP, RSTP, and HSRP/VRRP are commonly used depending on the layer and overall design, ensuring effective data transmission across devices and nodes.
What is the impact of hybrid topology on network security?
Hybrid topology combines multiple network structures, impacting security by increasing the complexity of the physical topology. This complexity can create more entry points for attacks; however, it also allows for more refined security segmentation across nodes and devices when combined with robust firewalls and intrusion detection systems.
Does a hybrid topology enhance network performance?
Yes, a well-designed hybrid topology can enhance overall performance by allowing high-performance backbones (mesh or high-speed links) for critical traffic while efficiently handling local traffic in simpler segments. Poor design or management can introduce performance issues due to complexity.
How is traffic managed in hybrid networks?
Traffic management involves routing protocols between segments, Layer 2 mechanisms (VLANs) for segmentation, QoS policies for prioritizing critical traffic, and potentially load balancing (ECMP, LACP). SD-WAN can intelligently steer traffic over underlying hybrid WAN links.
Does a hybrid topology support SD-WAN?
Yes, hybrid topology fully supports SD-WAN. SD-WAN overlays are often deployed over an underlying physical hybrid WAN infrastructure (combining MPLS, broadband, etc.).
Are hybrid topologies more expensive?
Initial cost might be higher than a simple single topology due to diverse hardware and design complexity. Long-term operational cost can be lower by avoiding over-engineering and benefiting from easier scaling and greater resilience. Cost varies based on scale and design.
Can hybrid topology support IoT networks?
Yes, hybrid topology supports IoT networks by providing flexible, scalable connectivity for a wide range of devices. With proper security and management, the physical topology can be designed to handle massive data transmission requirements across nodes and devices.
