What is network topology?

When setting up a network, picking the right topology is like choosing the foundation of a building—it affects performance, scalability, and security. Whether you're a business, IT pro, or just curious about networking, this guide will break down the different types of network topologies and highlight the importance of configuration management in maintaining these systems efficiently. Plus, we'll show you how CloudMyLab can help you test, design, and optimize your network setup hassle-free!

What is network topology?

Network topology refers to the structure of how devices, like computers, routers, and switches, are arranged and communicate, detailing how data packets travel through different links among these components. There are two main types: physical topology, which represents the actual layout of devices and cables, and logical topology, which defines how data flows through the network, including specific configurations like point-to-point topology. Both play a crucial role in determining efficiency, fault tolerance, and scalability.

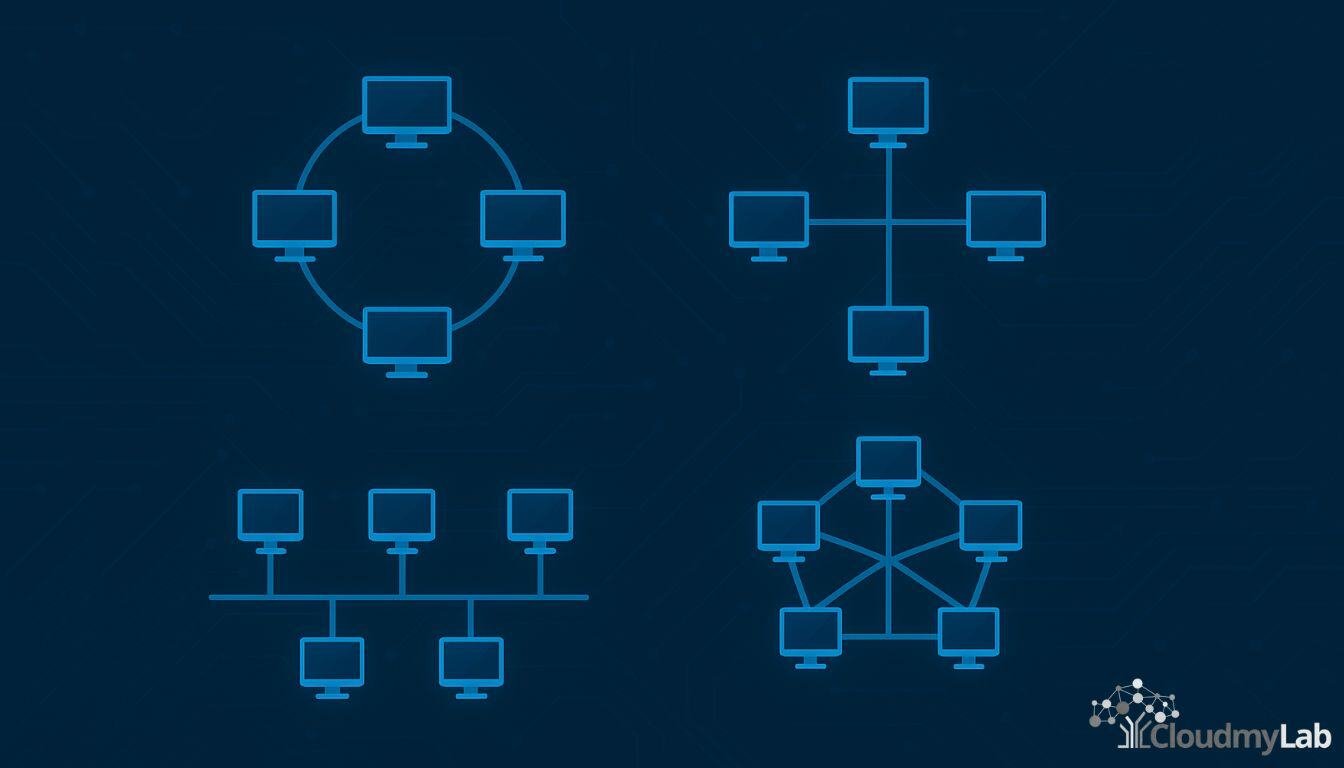

Exploring the Types of network topologies

Bus Network Topology

One of the simplest designs is the bus topology, where all devices share a single central cable, or "bus," for communication. This setup is budget-friendly and easy to implement, making it ideal for small office networks or temporary setups like workshops. However, its biggest drawback is that if the main cable fails, the entire network is compromised. Additionally, as more devices are added, data collisions become more frequent, which can slow down network performance.

Star Network Topology

A more common approach today is the star topology, where all devices connect to a central hub or switch. This setup is widely used in home networks, businesses, and schools because it improves data transmission efficiency and makes troubleshooting easier. If one device fails, it doesn’t affect the rest of the network. However, if the central hub malfunctions, everything connected to it loses connectivity. Despite requiring more cabling, the ease of scalability makes it a preferred choice. If you're considering deploying a star topology, CloudMyLab offers hosted emulators like GNS3 and EVE-NG, allowing you to test configurations before implementation. Explore Hosted Emulators.

Ring Network Topology

A ring topology connects devices in a circular arrangement, where each device has exactly two neighbors. Data travels in one or both directions around the ring, ensuring consistent communication. This topology is simple to manage and avoids data collisions, making it efficient for small and medium-sized networks. However, a single node failure can disrupt the entire network unless a redundant ring is in place. While it requires specialized hardware for maintenance, ring topology is still used in some metropolitan area networks (MANs) and fiber optic setups.

Mesh Network Topology

In a mesh topology, every device connects directly to multiple others, ensuring redundancy and fault tolerance. This setup is ideal for environments demanding high reliability, such as data centers and military networks. There are two types: full mesh, where every device connects to every other, and partial mesh, which balances connectivity and cost. Although mesh networks provide excellent speed and security, they require extensive cabling and configuration, making them complex to set up. However, with the rise of wireless mesh networks, this topology is increasingly used in smart homes and large enterprises.

Tree Network Topology

A tree topology combines elements of bus and star topologies, forming a hierarchical structure where nodes branch out from a central backbone. It is commonly used in large networks, such as corporate offices and university campuses, where different departments need their own subnetworks. The scalability of tree topology makes it an excellent choice for growing networks, but it does require high maintenance and a strong backbone connection to prevent bottlenecks. If the central connection fails, large portions of the network can be affected.

Hybrid Network Topology

A hybrid topology is a mix of two or more different network topologies, such as star-ring, tree-mesh, or bus-star. This flexibility allows businesses to customize their networks based on scalability, redundancy, and performance needs. Hybrid networks are commonly seen in large enterprises, cloud computing environments, and data centers, where different departments or services require distinct configurations. Although hybrid networks provide higher efficiency and reliability, they can be costly and complex to maintain. For testing and deploying hybrid network designs, OneMind Services offers cloud-based network emulators like GNS3 and EVE-NG, enabling seamless configuration before real-world implementation.

Real-World Applications of Network Topologies

In enterprise settings, network topology isn’t just about efficient data flow—it’s about ensuring continuous business operations, often utilizing mesh topology. For instance, financial institutions rely heavily on mesh topologies to maintain redundant communication paths, reducing the risk of downtime in mission-critical operations. A stock trading firm, for example, cannot afford a single point of failure. By implementing a full mesh network, it ensures that multiple data paths exist between servers, so if one node fails, another seamlessly takes over.

Educational institutions and school network topologies, on the other hand, often leverage tree topologies to create structured, scalable networks. Universities with multiple campuses need to support thousands of users while maintaining security and data segmentation. A hierarchical tree topology helps in structuring these vast networks efficiently, dividing traffic into different layers such as administrative, academic, and student networks.

Service providers, such as ISPs and cloud hosting companies, typically implement hybrid topologies, including elements of bus topology, to manage traffic loads efficiently. With a combination of star, mesh, and bus architectures, they can optimize bandwidth allocation and minimize latency. Cloud providers like AWS and Azure rely on hybrid designs to interconnect data centers across different regions while ensuring failover capabilities.

The Role of Network Virtualization in Topology Design

With the rise of cloud computing and virtualization, physical network constraints are becoming less significant. Software-defined networking (SDN) allows organizations to abstract their network infrastructure, creating virtual topologies that can be reconfigured dynamically. Instead of being limited to a fixed physical topology, businesses can now deploy virtual mesh or hybrid topologies tailored to their evolving needs.

For instance, a company might start with a simple star topology for its local office but expand its network into a hybrid topology when it adopts cloud-based applications. With CloudMyLab’s virtual lab environments, organizations can test these virtualized network setups before making costly infrastructure investments.

Security Considerations in Constructing the network topology

Choosing the right topology isn’t just about performance—it’s also about security. Certain topologies, such as bus and ring architectures, are more vulnerable to cyber threats due to their shared medium. In contrast, mesh and hybrid topologies offer built-in redundancy and isolation, making it harder for attackers to compromise the entire network.

Organizations handling sensitive data, such as government agencies and financial firms, often implement segmented hybrid topologies with firewall-enforced perimeters to prevent unauthorized access. Additionally, zero-trust security models are being integrated into network topologies, ensuring that every connection request is authenticated, regardless of the topology being used.

Edge Computing and Its Impact on Network Topologies

With the growth of edge computing, traditional topologies are being redefined. Instead of relying on centralized data centers, edge networks push computing power closer to the end-user, reducing latency. This shift has given rise to distributed mesh topologies, where IoT sensors, autonomous vehicles, and smart devices communicate with local edge nodes rather than routing all data through a central hub.

Manufacturing plants, for instance, use edge-enabled mesh networks to support real-time machine-to-machine communication. By processing data at the edge rather than sending it back to a central server, latency is minimized, improving overall efficiency.

Optimizing Network Topologies with CloudMyLab

Selecting and implementing the right topology can be complex, but CloudMyLab simplifies the process with its hosted emulators, Lab as a Service (LaaS), and professional consulting. Whether a business is experimenting with hybrid cloud connectivity, virtualized SDN topologies, or edge computing integrations, CloudMyLab provides a risk-free environment to test, optimize, and deploy networks.

With the continuous evolution of networking technologies, businesses must remain adaptable. Whether scaling up with tree topologies, securing data with mesh topologies, or leveraging AI-driven automation, choosing the right approach is crucial for efficiency and security.
If you're unsure how to design a custom network topology or hybrid topology, CloudMyLab’s Professional Services can help create an optimized solution that meets your needs. Learn More.

The Best Network Topologies for Edge Computing

Edge computing thrives in specific network architectures that maximize efficiency and redundancy. Let’s examine how different topologies integrate with edge environments:

1. Mesh Topology: The Backbone of Edge Computing

• Why It Works: ✔ Decentralization aligns perfectly with edge networks. ✔ Multiple redundant paths reduce failures in real-time applications.
  ✔ Used in IoT, 5G networks, smart cities, and AI-driven analytics.
• Real-World Example: Autonomous Vehicles & Smart Transportation
  • Edge computing in self-driving cars enables real-time sensor data processing.
  • Mesh topology ensures constant communication between vehicles, edge nodes, and cloud servers, reducing decision-making delays.

2. Star Topology: Ideal for Controlled Edge Environments

• Why It Works: ✔ Centralized control with distributed edge nodes. ✔ Common in enterprise networks, AI-based security surveillance, and smart homes.
• Real-World Example: Smart Office Buildings
  • AI-driven access control & surveillance systems in large office buildings operate using star topology for centralized monitoring.
  • Edge devices process real-time security footage, reducing cloud traffic and improving response time.

3. Hybrid Topology: A Future-Proof Approach

• Why It Works: ✔ Combines multiple topologies to meet scalability, efficiency, and redundancy needs.
  ✔ Preferred by telecom, cloud providers, and multinational enterprises.
• Real-World Example: 5G Networks & Content Delivery Systems
  • Hybrid networks combine mesh, star, and ring topologies for low-latency 5G services.
  • Content providers use edge nodes to transmit data packets, delivering streaming media and cloud gaming with minimal delay.

AI in Network Topologies: The Next Evolution

Artificial Intelligence (AI) is revolutionizing network management, automation, and security. Traditional networks require manual configuration, but AI-driven topologies self-optimize based on real-time analytics.

How AI Enhances Network Performance

✔ Predictive Network Optimization – AI analyzes traffic patterns and adjusts routing dynamically.
✔ Automated Fault Detection & Self-Healing – AI detects issues and reconfigures topology paths to prevent downtime.
✔ Adaptive Security Mechanisms – AI-driven threat detection prevents cyberattacks before they spread.
✔ Traffic Load Balancing – AI redistributes bandwidth for optimal performance across nodes.

AI-Powered Network Topologies

1. Intent-Based Networking (IBN) with AI

• What It Does:
  • AI understands business intent and automates network configurations.
  • Used in cloud data centers, SD-WAN solutions, and AI-driven security networks.
• Real-World Example: Healthcare Networks & AI Diagnostics
  • AI-powered networks in hospitals ensure real-time patient monitoring.
  • Edge AI processes emergency response data, improving life-saving reaction times.

2. AI-Driven SD-WAN for Hybrid Cloud Networks

• What It Does:
  • Uses AI for real-time bandwidth allocation and cybersecurity enhancements.
  • Enables secure, high-speed hybrid cloud connectivity.
• Real-World Example: Global Enterprises & Multi-Cloud Strategies
  • AI-SD-WAN ensures seamless cloud service integration across AWS, Azure, and Google Cloud.
  • AI optimizes traffic routing for cost-effective, high-performance cloud applications.

3. AI-Integrated Mesh Networks for 5G & IoT

• What It Does:
  • AI autonomously reroutes network traffic for low-latency applications.
  • Reduces network congestion in dense IoT deployments.
• Real-World Example: Smart Traffic Systems & AI-Powered Surveillance
  • AI-driven edge cameras analyze traffic patterns in real-time.
  • Mesh topology with AI ensures uninterrupted video analytics for law enforcement.

Challenges in Implementing Edge Computing & AI in Networking

While edge computing and AI are game-changers, they come with challenges that organizations must address:

1. Security & Privacy Risks

• Edge devices process critical data locally, making them vulnerable to breaches.
• Solution: AI-based intrusion detection can monitor anomalies in real-time.

2. Network Complexity & AI Training Costs

• AI-driven networks require massive datasets for accurate predictions.
• Solution: Cloud-based AI training reduces on-premise infrastructure costs.

3. Scalability Concerns

• Expanding AI-powered networks across global infrastructure can be costly.
• Solution: Hybrid architectures allow gradual AI adoption across key locations.

The convergence of Edge Computing and AI is reshaping network topologies by improving speed, security, and automation. Organizations adopting AI-powered hybrid and mesh networks will stay ahead in the cloud-first era.

Finding the Best Topology for Your Needs

Selecting the right network topology depends on network size, budget, scalability needs, and security considerations.

• If cost-effectiveness is the main priority, bus topology is the most affordable but has limited scalability and fault tolerance.
• For home networks, small businesses, and schools, star topology offers reliability and easy troubleshooting.
• Ring topology is still used in metro networks and fiber optic deployments, but its dependency on a continuous loop can be a drawback.
• Businesses that require high redundancy and fault tolerance, such as data centers and financial institutions, often rely on mesh topology for uninterrupted communication.
• For large organizations, universities, and scalable enterprise environments, tree topology provides structured expansion while maintaining efficiency.
• Hybrid topology is the most flexible, commonly used by ISPs, cloud providers, and large-scale businesses, as it combines multiple topologies to balance performance, security, and cost.
